CRL FS297B Window Channel Balance Repair Kit Tan

• 10 Popular Guide Combinations to Choose From
• Conveniently Packaged Kit for Single Repair

Shipping Weight

2 oz (45g)

Height

1-1/4, 1-5/8

Finish

Tan

Depth

11/16

Width

9/16

Wing Width

15/16

Includes

FS101,FS151,FS261,FS260

Finish/Color

Tan

Bottom Guide Length (Inches)

1-3/32

Bottom Guide Width (Inches)

1/2

Guide Profile

Winged

Poly Bag

Yes

Bottom Guide Length

1-3/32

Bottom Guide Width

1/2

Product Overview
This CRL Window Channel Balance Repair Kit is designed to be used with window channel balances. The top and bottom guides being replaced should match the dimensions and profiles of those pictured on this page to insure the proper replacement of the window channel balance. This kit, along with the window channel balance, gives you everything you need for the replacement.
To set the rivets in this kit you will need Cat. No. H3740 rivet installation tool. For large orders of ten or more balances, you have the option of ordering window channel balances with the top and bottom guides factory installed. Contact our Technical Sales Department for questions or pricing and delivery on 10 or more units.

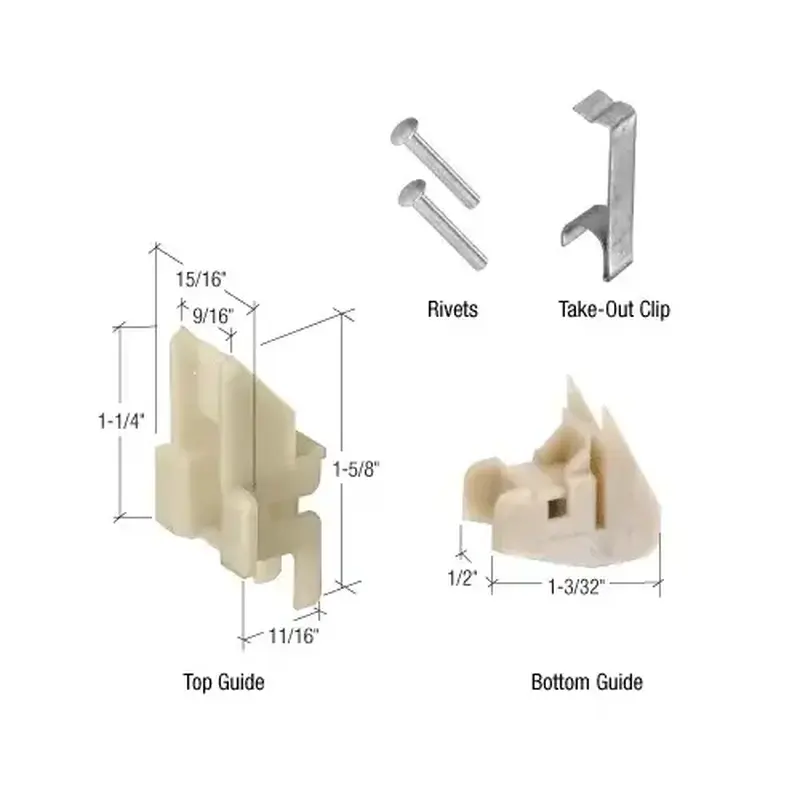

Kit Includes:
1 Each Cat. No. FS101 Top Guide
1 Each Cat. No. FS151 Bottom Guide
2 Each Cat. No. FS261 Rivets
1 Each Cat. No. FS260 Take-Out Clip
