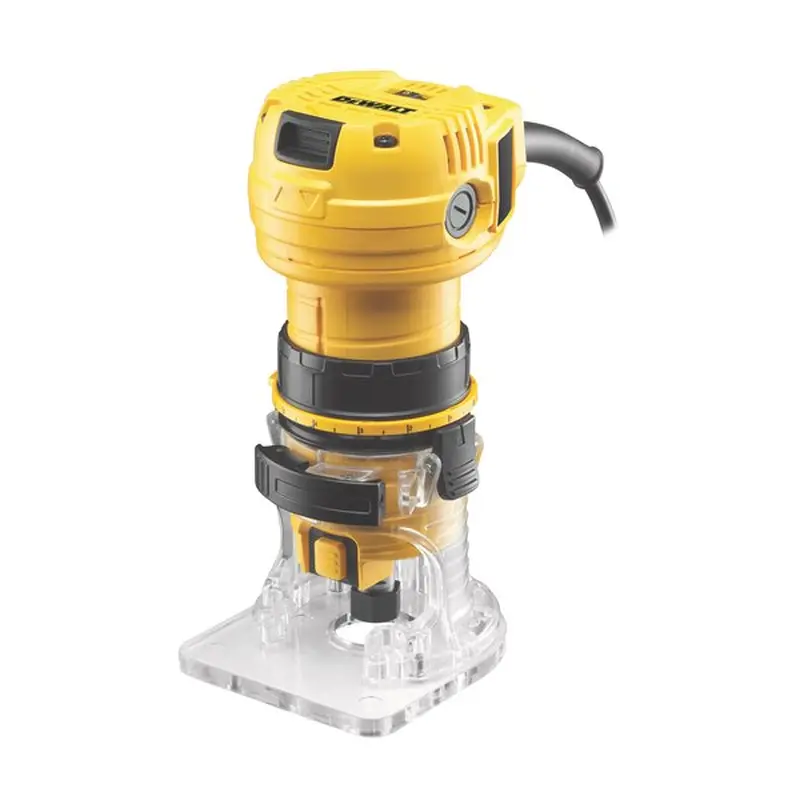

6mm Laminate Trimmer

Features

• Variable speed control 16000 – 34000 rpm enables router bit to be optimised for application
• Especially for small radius, chamfers and shaping edges
• Clear base gives the user a clear line of sight to cutter & workpiece
• Copy follower system with 10 mm ball bearing , comfort and precision
• Spindle lock mechanism for quick and easy cutter changes with a single spanner
• Light weight makes it ideal for one hand use and accurate work
• D-Base design to allow the user maximum support on the workpiece
• Depth ring and clamping mechanism combine to give the user an accurate depth of cut adjustment
• LED light gives the user increased visability

Technical Data

• Weight 2.1 kg
• No Load Speed 16000 – 34000 rpm
• Plunge Stroke/Movement 22 mm
• Collet Size 6.35 mm
• Max. Cutter Diameter 25.4 mm
• Power Source Corded
• Power Input 590W
• Power Output 340 W
• Length 110 mm
• Height 205 mm
• Hand/Arm Vibration 2.5 m/s
• Uncertainty K 1 (Vibration) 1.5 m/s
• Sound Pressure 78 dB(A)
• Sound Pressure Uncertainty 3 dB(A)
• Sound Power 89 dB(A)
• Sound Power Uncertainty 3 dB(A)

What’s Included

• Fence 1 X
• D shaped base 1 X
• Dust extraction adapter 1 X
• 6 mm 1/4″ UK) collets X
• 17 mm spanner 1 X
• Copy follower 1 X
